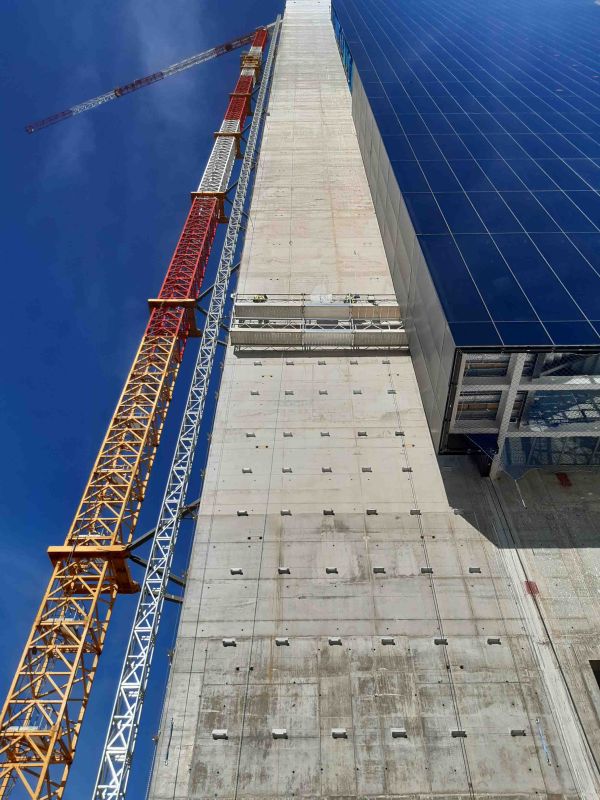

Double deck suspended platform

Double deck suspended platform

The Double Deck Suspended Platform starts from the KOMPLET suspension scaffold with extreme Accesus lyres.

It is a lifting system for people and loads, mainly made of aluminum, used to carry out specific vertical installation, inspection, and maintenance work in suspension, such as facades, bridges, chimneys, silos, and tanks, awnings, or patios.

In addition to the standard parts of the KOMPLET suspended platform (modules between 1 and 3 m in length which can be combined with each other), the double-deck hanging platform has the electrical lifting devices (e.lift® 501 or e.lift® 600), the fall safety devices (securichute®600), the electrical cabinet and validation cabinet, two double-deck brackets, four handrails, a double-deck protector and a floor with the trapdoor.

In contrast to the KOMPLET aluminum suspended scaffolding, the double-deck suspended platform’s possible configurations are 2 to 12 meters in length. Its total load capacity would be between 270 and 720 kg, according to the design.

Ask here for more information

Check the technical data sheet to know all the possible platform lengths, their related load capacity, and the maximum number of people allowed.

The working height is unlimited because it depends on the length of the passing wire placed for each job. The installation of the double-deck suspended platform is easy, using pins with safety clips and screws. It is available in a three-phase 400V or single-phase 230V version. Compatible with a wide range of accessories and supports of the KOMPLET family that will vary according to the application to be given to the equipment.

It is delivered with its own CE certificates for lifting people and its application and assembly manual, as required by European Directive 2006/42 and EN 1808.

Summary table of basic features of the Double Deck Suspended Platform:

Optional flexible configurations (lengths in meters) From 2 to 12 m
Max. load capacity From 270 to 720 Kg, according to the configuration
Max. load capacity per floor From 150 to 600 Kg, according to the configuration
Maximum work height Unlimited
Number of people From 2 to 5, according to the configuration
Lift speed 9 m/min (available at 18/min)
Material Aluminum and steel
