CG 600 crane basket

CG 600 crane basket

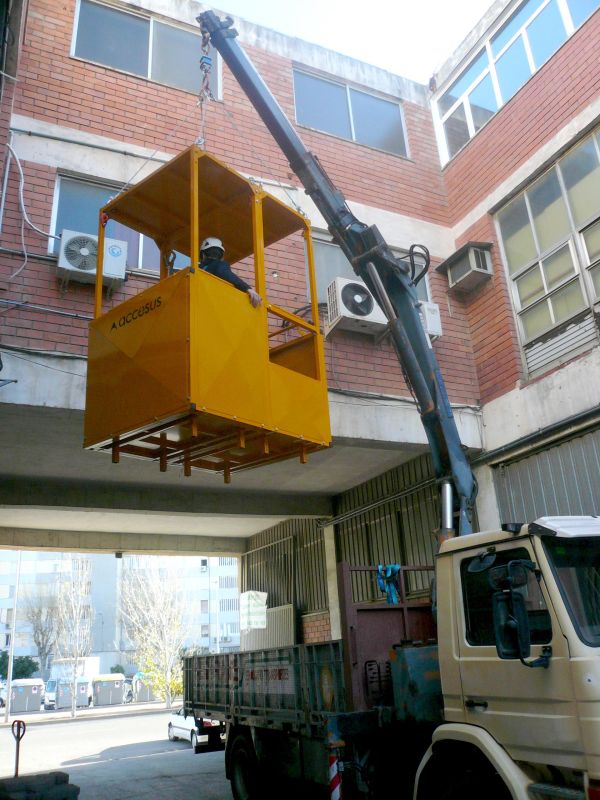

The Accesus CG 600 crane basket is a useful certified rescue system for 5 people.

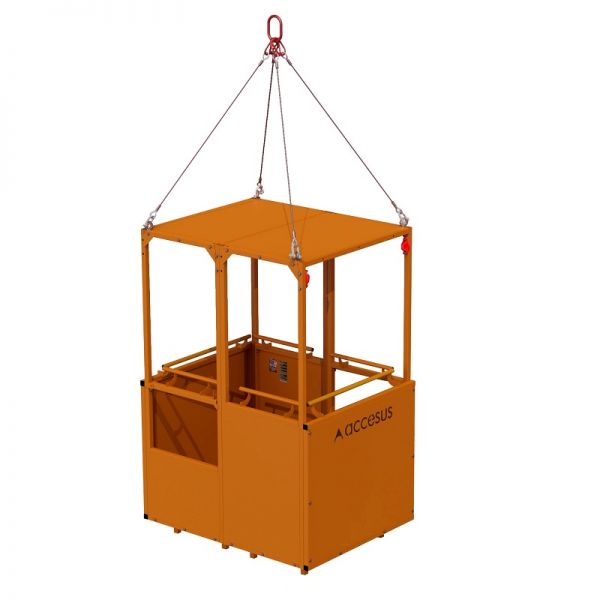

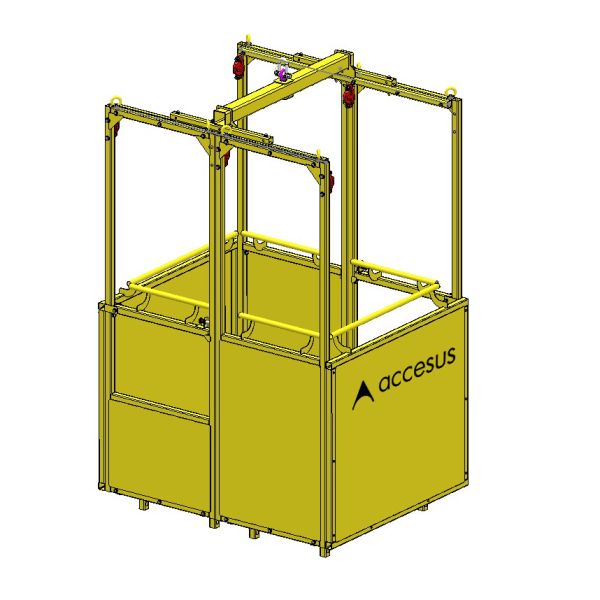

It is available in two different configurations: with a closed roof and without a roof, as required.

The CG 600 crane basket can be used in a wide variety of sectors, such as unique construction sites, shipyards, ports, crane companies, waterworks, rescue planning, and slope work or heavy industry.

It is made up of two modules from the CG family and can be upgraded to the CG 900 by adding screwed modules or reduced to the CG 300.

This model includes five fixing points in accordance with the EN-795 standard for the safety of users.

Ask here for more information

CG 600 crane baskets are equipped with two access doors with automatic locking and blocking system, protective handrails and bases, interior handrails to avoid trapping, lower support legs to prevent foot trapping, non-slip floors, and suspension slings. Besides, the basket always includes the suspension octopus when supplied to the customer.

As producers, we always provide the assembly and use manual and the safety certificate, also the CG600 basket has the load and product identification plates incorporated.

Completely removable, the CG600 hanging basket is easy to transport and store.

Produced according to the UNE-EN 14502-1 standard and certified by the testing, inspection and certification body Bureau Veritas.

CG600-suspended-basket basic features summary table:

Max. load capacity  600 Kg (5 people)
Weight  250 Kg
Maximum height Unlimited
Height of railings 1,1 m
Total height 2,5 m
Number of access doors 2
Dimensions 1,52 x 1,2 x 2,27 m
Material Steel
Finished  Paint
