AVAHO descent equipment

AVAHO descent equipment

0,00

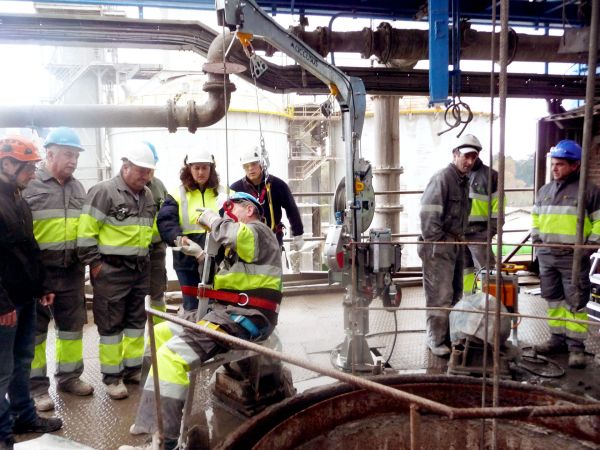

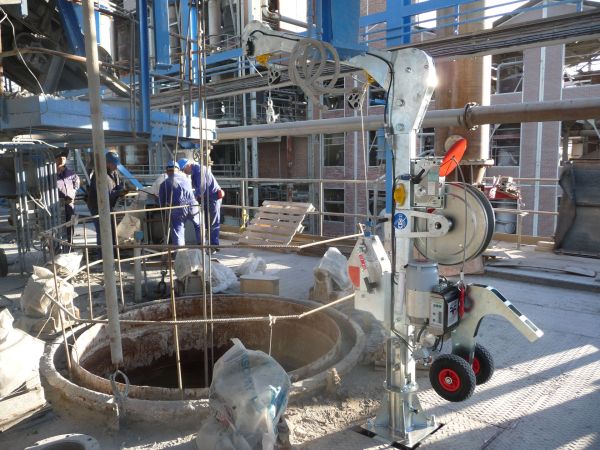

The AVAHO ascent, descent and rescue equipment has a three-phase engine and is perfectly recommended for use in confined spaces such as wells, furnaces, sewage plants, sewers, dam gates, water treatment plants, etc.

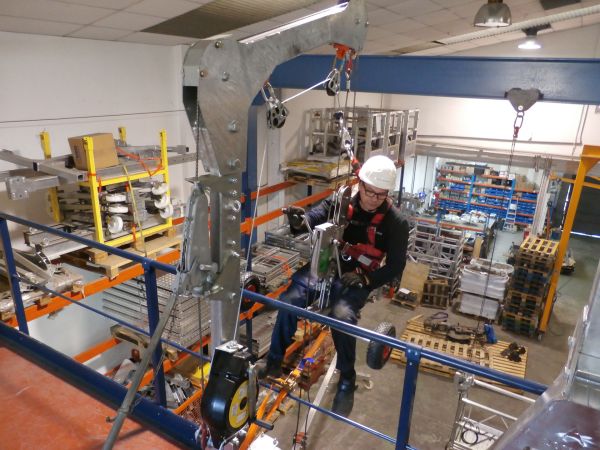

The AVAHO is composed of a chair, basket or suspended basket for one person, hanging by steel wires from a suspended boom equipped with an e.lift® 280 electric lift, a securichute 600 fall arrester, a cable collector and a retractable fall arrester that complies with EN360. The jib is fixed to the slab by means of a fixed base.

The maximum height of use is 60 meters, according to the configuration of the equipment, so it will be important to know the working height to ensure the configuration of the AVAHO.

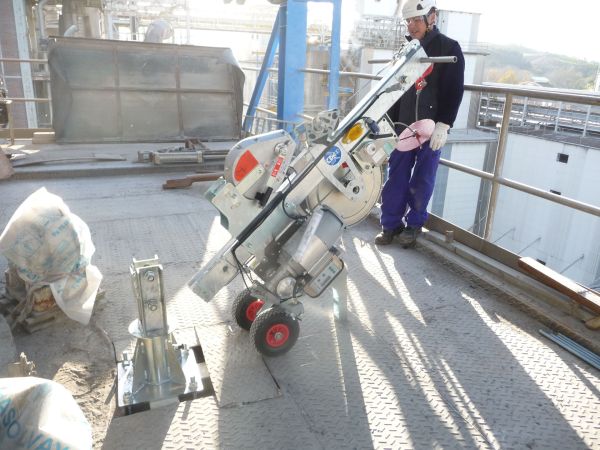

The AVAHO equipment is removable and transportable, making it easy for the user to install it in different places. Its handling is easy and allows to raise and lower people in a fast and safe way. The AVAHO equipment has two control posts: one wirelessly next to the chair or hanging basket and the other at the suspension boom support level. Besides, it has an EN795B fall protection system that allows the operator’s manual rescue in case of fall or absence of current.

Ask here for more information

The equipment is compatible with different models of chairs and hanging baskets Accesus Basic, all certified for the AVAHO. As a whole, the AVAHO is CE marked and complies with the safety requirements to form a temporary suspended access installation under the declaration of conformity of the Machine Directive 2006/42/CE.

Summary table of basic features of AVAHO descent equipment:

Max. load capacity 280 Kg
Max. load capacity of chair or basket 120 Kg
 Maximum working height 30 - 50 m
Minimum space required 470 mm
Number of people 1
Lifting speed 8 m/min
alimentacion-electrica Power supply Three-phase 400V - 50 Hz
Anchorage points  EN795B 3
Material Aluminum and steel
