AVAHO S descent equipment

AVAHO S descent equipment

0,00

The AVAHO S ascent, descent and rescue equipment has a three-phase engine and is perfectly suitable for use in confined spaces such as wells, furnaces, treatment plants, sewers, dam gates or water treatment plants (EDAR, ETAP, IDAM…).

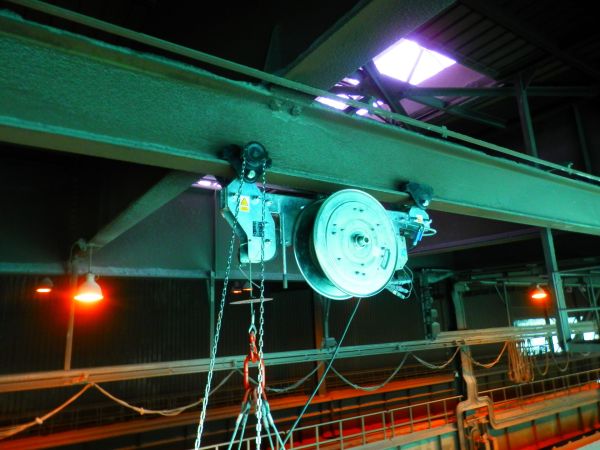

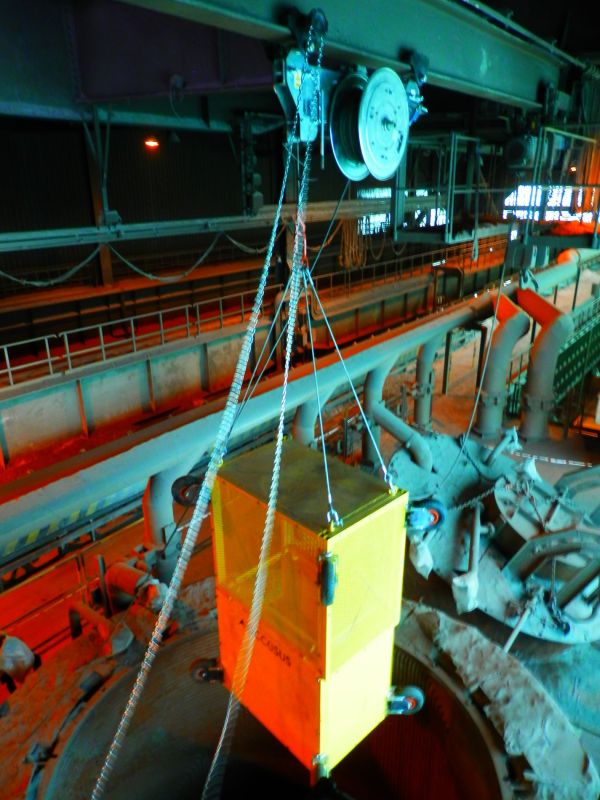

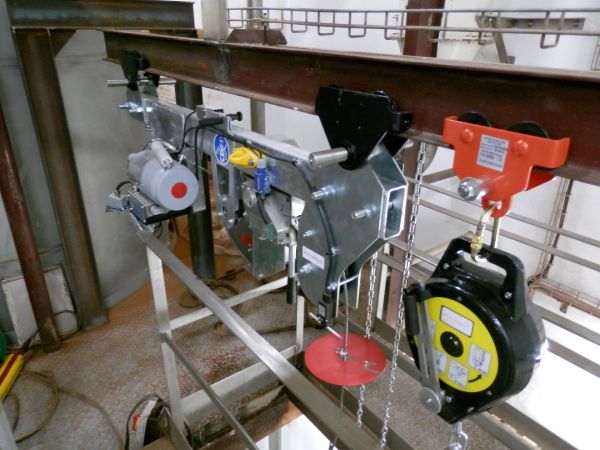

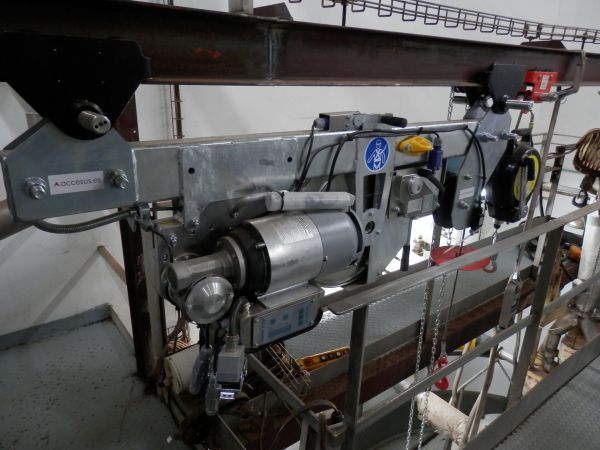

Its main difference with its counterpart AVAHO would be that instead of a boom it is installed on a rail beam. Thus, the AVAHO S is composed of a chair, basket or hanging cabin for one person, suspended by steel cables from a suspension trolley equipped with an e.lift® 280 electric lift, a securichute600 fall arrester, a cable collector and a retractable fall arrester anchored to an independent trolley that complies with EN360. The suspension is anchored to a carriage that moves horizontally on a T-beam.

The maximum height of use is 60 meters, according to the configuration of the equipment, so it will be important to know the working height to ensure the configuration of the AVAHO S.

Ask here for more information

For easy installation in various environments, the AVAHO S equipment is removable and transportable. Moreover, it is very comfortable to handle, since it allows to raise and lower people quickly and safely. The AVAHO S equipment offers two control stations: one wireless next to the chair or hanging basket and the other at the suspension trolley support level. Also, it has an EN795B crank safety system that allows the operator's manual rescue in case of fall or absence of current.

The equipment is compatible with different models of chairs and hanging baskets Accesus Basic, all of them certified for the AVAHO S. As a whole, the AVAHO S is CE marked and complies with the safety requirements to form a temporarily suspended access installation under the declaration of conformity of the Machine Directive 2006/42/EC.

Summary table of basic features of AVAHO descent equipment:

Max. load capacity 280 Kg
 Max. load capacity of chair or basket  120 Kg
Maximum working height 30 - 50 m
Beam wing width for trolleys Between 50 and 220 mm
Minimum space required 470 mm
Number of people 1
Lifting speed 8 m/min
alimentacion-electrica Power supply Three-phase 400V - 50 Hz
 Anchorage points for people  EN795B  1
Material Alumium and steel
