Circular Suspended Scaffolding

Circular Suspended Scaffolding

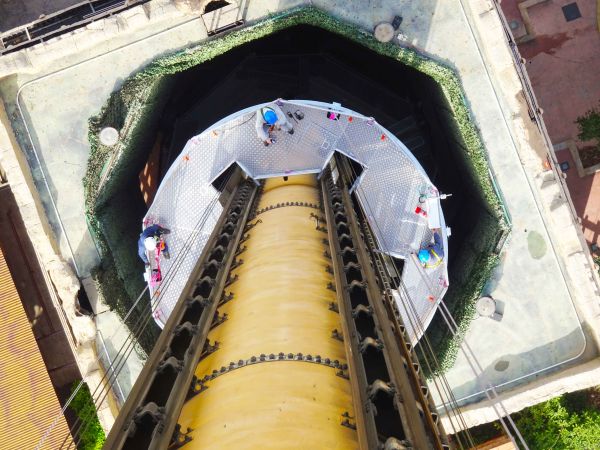

The Circular Suspended Scaffolding is a modular aluminum platform, removable in small pieces and adaptable to diameters between 2.2 and 3.5 meters for works in chimneys, hoppers, silos, ovens, tanks, reservoirs, wells, and other spaces of circular geometry.

As most of Accesus’ people and load lifting equipment, circular suspended platforms are mostly made of aluminum and efficiently and quickly installed using threaded pins.

Another advantage of the Accesus circular platforms is that they are made up of small parts and installed in narrow places or places with difficult access, such as utility holes with a diameter of 750 mm. Moreover, as it is modular equipment, the platform can be adapted to other dimensions and sizes, according to the customer’s needs.

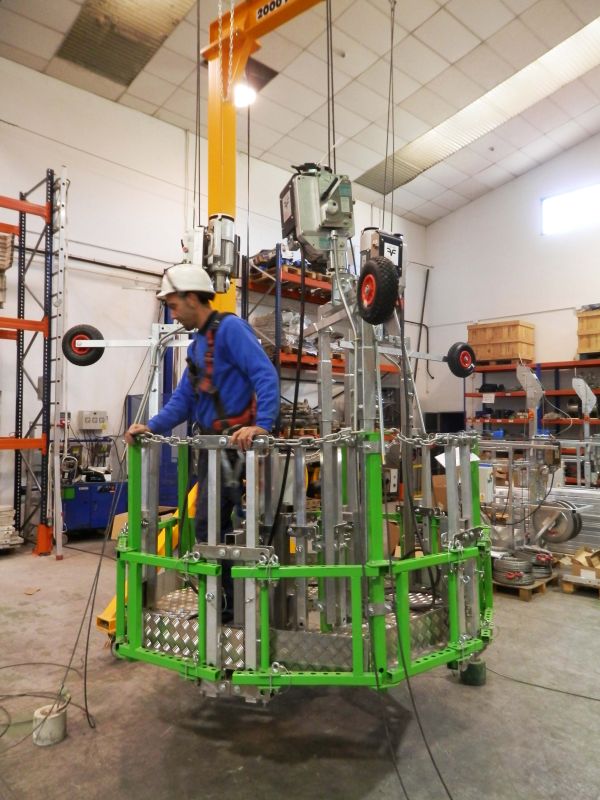

The circular suspended platform is made up of three electric lifts (e.lift® 501), three fall protection devices (securichute®600), an electric cabinet, lyres and side and angle floors, suspension and safety cables, motor anchors, and railings.

Ask here for more information

The same circular platform allows changing its dimensions by changing its components to work in the desired diameter in different building sections, such as a chimney. However, the circular platform's load capacity in all its possible configurations would be 600 kg and allows a total of 3 people simultaneously.

The working height is unlimited because it depends on the length of the passing cable placed for each job. Compatible with a wide range of accessories and supports of the BASIC and KOMPLET family will vary according to the application given to the equipment.

It is delivered with its corresponding CE certificates for lifting people and its use and assembly manual, as required by European Directive 2006/42 and EN 1808.

Summary table of basic features of the circular suspended platform:

Modular configurations possible (diameter in meters) 2,2 - 3- 3,5 m
Max. load capacity 600 Kg
Weight circular empty pendant From 685 to 750 kg, according to the configuration
Maximum working height Unlimited
 Number of people  3
Lifting speed 8 m/min
Minimum space required 750 mm in diameter
Material Aluminum and steel
