TRI 9 aluminum tripod

TRI 9 aluminum tripod

0,00

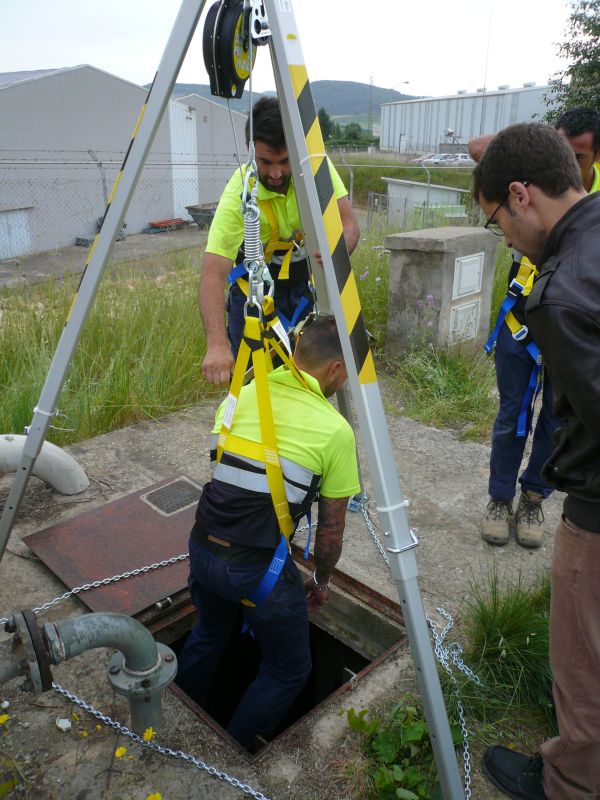

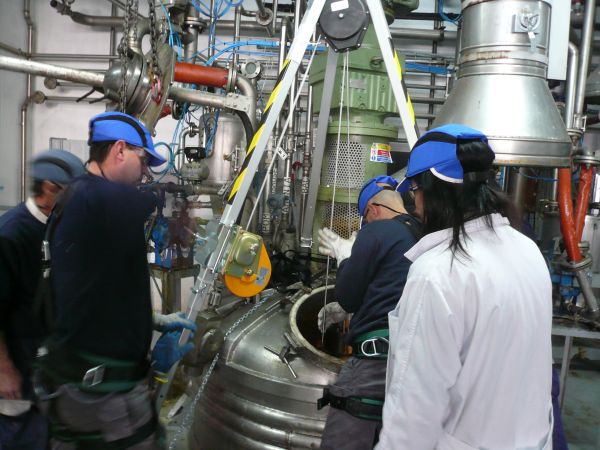

The Accesus TRI 9 security tripod is a rescue system for confined spaces certified for one person or loads up to 500 kg. Its working height goes from 1.47 to 2.30 meters.

The Accesus TRI 9 security tripod is a rescue system for confined spaces certified for one person or loads up to 500 kg. Its working height goes from 1.47 to 2.30 meters.

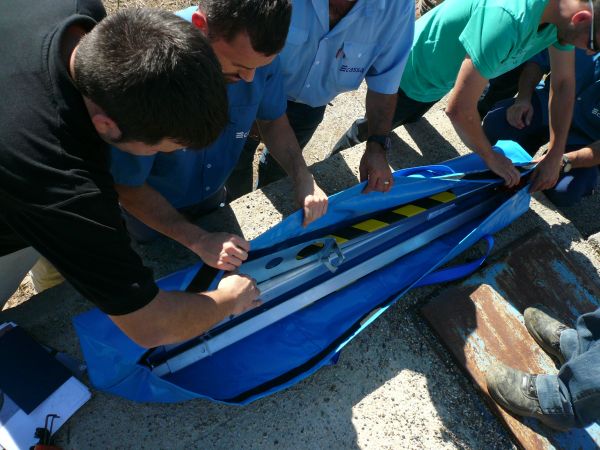

The TRI9 tripod is an aluminum alloy made, very lightweight temporary anchorage device, easy to assemble and transport thanks to its carrying bag.

This is a very complete rescue tripod, equipped with 4 anchor points at its head, telescopic legs with 7 possible adjustment points, non-slip feet, and an included chain or strap for fixing the legs.





Ask here for more information

The Accesus TRI9 tripod is compatible with several lifts-rescuers models, retractable fall arresters, and Accesus rescuers that follow the EN 1496 on rescue devices. Contact us to choose the option that suits your needs the best.

It is certified following the EN 795 B safety standard for provisional anchorage devices. It can also work in ATEX atmospheres as required by standard TS 16415:2012.

TRI9 aluminum tripod basic features summary table:

Max. Load capacity   person or loads up to 500 kg
Weight  14.3 kg with strap or 17.3 kg with chain
Max. height  From 1.47 to 2.30 m
Diameter between legs  From 1.40 to 2.13 m
Distance between legs From 1.19 to 1.82 m
Dimensions stored  1,75 x 0,24 x 0,24 m
 People capacity 1
Material Aluminum alloy
