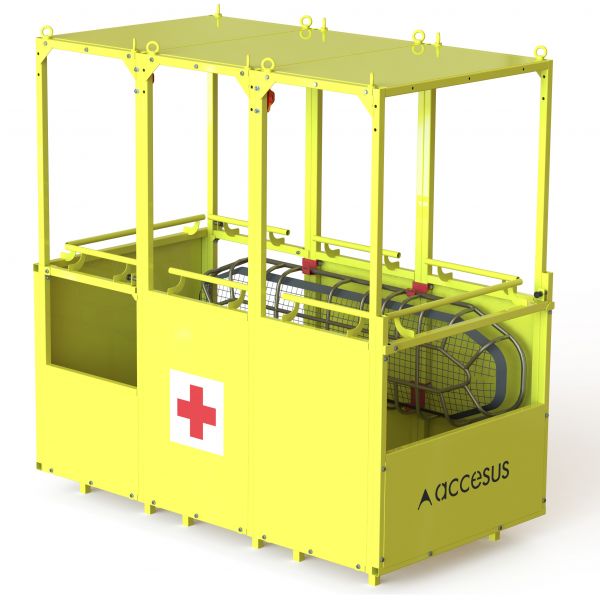

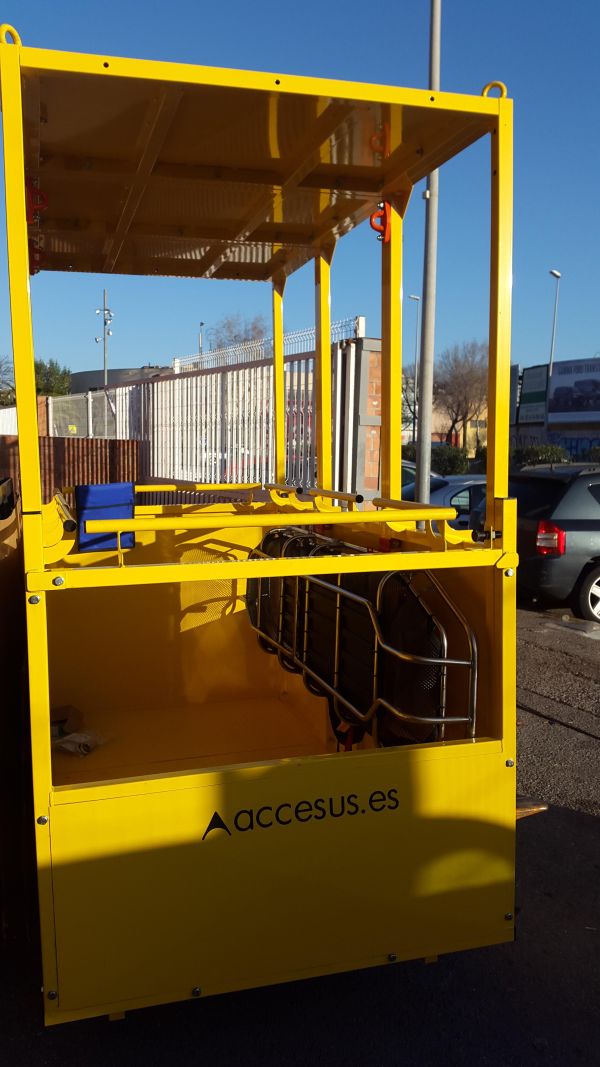

CG 900 crane basket

CG 900 crane basket

0,00

The Accesus Crane Suspended Baskets CG300 is a useful certified rescue system for 2 people.

It is availabe in two different configurations: with closed roof and without roof, as required.

The CG300 crane basket is very useful in many applications such as special works, shipyards, ports, crane companies, hydraulic works, rescue planning and works in slopes or heavy industry.

It consists of a CG family module and can be extended to become the CG 600 and CG 900 models by adding bolted modules.

This model includes two fixing points approved in accordance with standard EN-795 for the safety of users.

Ask here for more information

These crane baskets have an access door with an automatic locking system, protective handrails, and bases, interior handrails to prevent trapping, lower support legs to prevent foot trapping, non-slip floors, and suspension slings. In addition, the basket supply includes the suspension octopus.

As producers, we always provide the manual of installation and use and the safety certificate. Furthermore, the CG300 basket has incorporated the plates of loads and identification of the product.

Completely removable, the CG300 Suspended basket is easy to transport and store.

Produced according to the UNE-EN 14502-1 standard and certified by the testing, inspection, and certification body Bureau Veritas.

Summary table of basic features of the CG900 Crane Hanging Basket:

Maximum load capacity 400 Kg (3 personas)
Weight  350 Kg
Maximum height Unlimited
Height of railings 1,1 m
Total height 2,5 m
 Number of access doors 3
Dimensions 2,24 x 1,2 x 2,27 m
Material Steel
Finished  Paint
