PLACFIX Anchorage plate

PLACFIX Anchorage plate

0,00

The Accesus PLACFIX Anchorage plate is a suspension system for platforms, baskets and suspended scaffolding with a maximum load capacity of 800 kg.

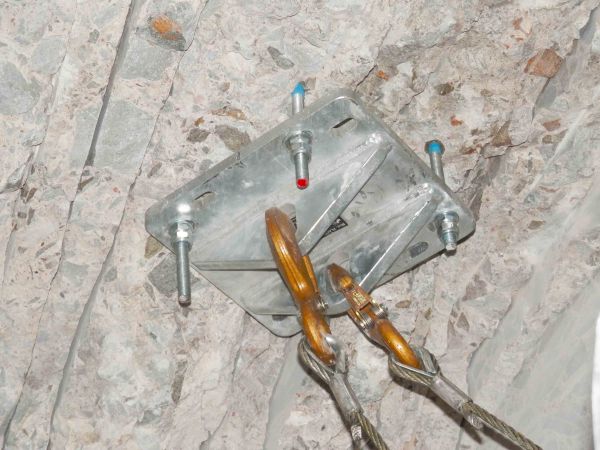

It can be fixed to the underside of slabs (floor slabs, concrete slabs, etc.) in 3 different ways: by means of chemical or mechanical anchors or with counter-plate and threaded rods.

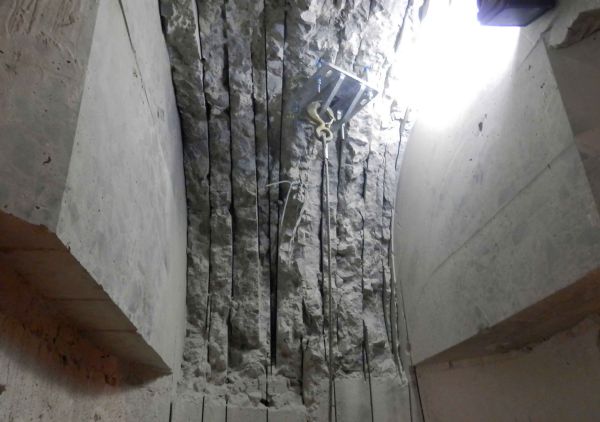

The PLACFIX anchorage plate is always placed horizontally to support the vertical suspended platforms. The two central eyelets of the anchorage plate is where the hooks of the ends of the suspension cables of the scaffolding or hanging platform being used will be located.

The PLACFIX anchorage plate is always accompanied by the corresponding CE certificate for lifting people and its use and assembly manual, as required by European Directive 2006/42 and EN 1808.

Ask here for more information

Summary table of essential features of the PLACFIX anchorage plate:

Max. load capacity  800 Kg
Weight  9 Kg
Counterplate weight 6,5 Kg
Dimensions 250 x 225 x 92 mm
Material Galvanized steel
