BRAKOO davit with swinging arm

BRAKOO davit with swinging arm

0,00

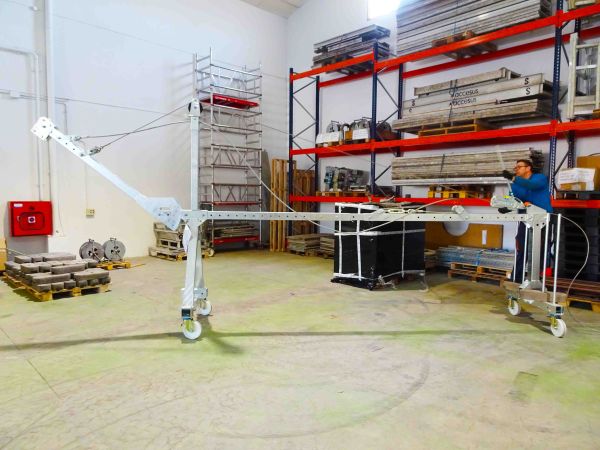

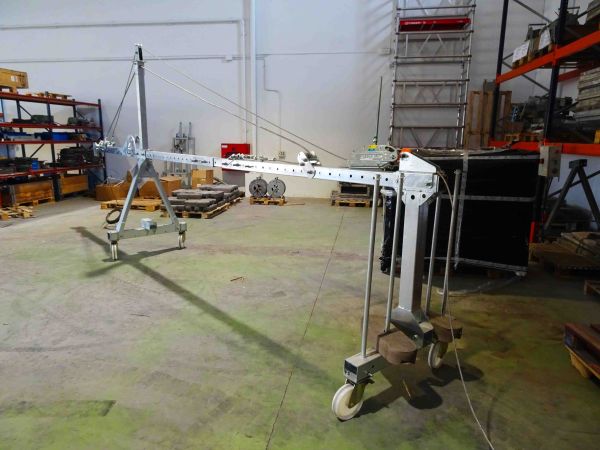

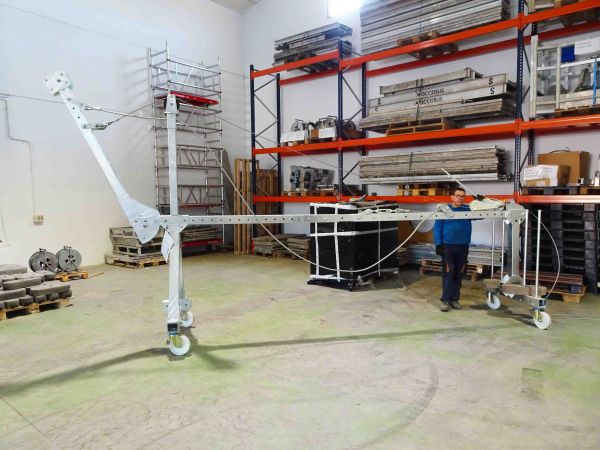

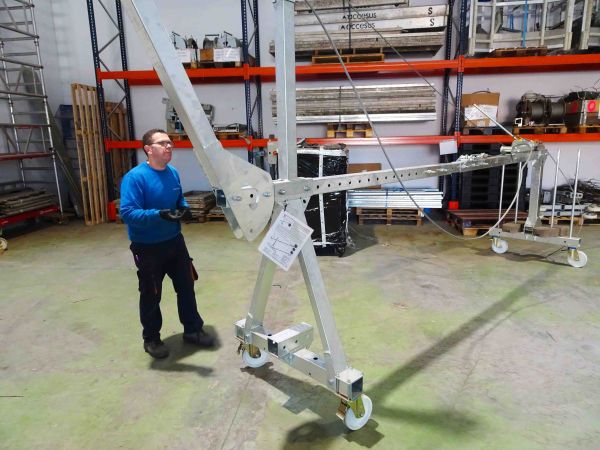

The BRAKOO davit with SWINGING arm by Accesus is only valid with the BRAKOO davit configurations 2B, 3B, and 4B. In contrast, the BRAKOO davit with SWINGING arm makes it easy to install a platform suspended from a terrace with little maneuverability and where walls of up to 2 meters have to be overcome, as the pendulum arm allows us to reach up to 4 meters in height.

If we look at the load capacity it can support, the BRAKOO davit with SWINGING arm is approved to hang suspended scaffolding with lifts with a maximum load capacity of 300, 400 or 500 kg.

The installation needs two operators, although it is very fast using screws and pins that fix the 25 kg counterweights in the davit accommodations. To carry out the suspended scaffolding’s installation operation from the terrace, installing the davit arm kit on the BRAKOO previously is necessary. In all the possible configurations, the maximum flight achieved with the swing arm is 2 meters.

Ask here for more information

The installation of the BRAKOO davit with SWINGING arm needs two operators, although it is very fast using screws and pins that fix the 25 kg counterweights in the davit accommodations. To carry out the suspended scaffolding's installation operation from the terrace, installing the davit arm kit on the BRAKOO previously is necessary. In all the possible configurations, the maximum flight achieved with the swing arm is 2 meters.

It is delivered with the corresponding CE certificate and the user and assembly manual, as required by European Directive 2006/42 and EN 1808.

Summary table of basic features of the BRAKOO davit with SWINGING arm:

Possible modular configurations 3 models: 2B, 3B and 4B
Max. load capacity 500 Kg
Maximum flight 2 m
Min. and max. length 2,3 - 6,3 m
Weight (without counterweights) model 2B 160 Kg
Weight (without counterweights) model 3B 275 Kg
Weight (without counterweights) model 4B 280 Kg
Height under the beam model 2B 1.250 mm
Height under the beam model 3B 2.200 mm
Height under the beam model 4B 2.500 mm
Material Galvanized steel
