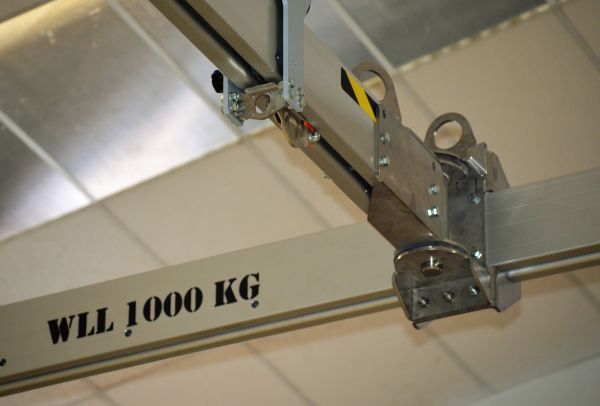

The BAS aluminum gantry is a special double gantry formed by 2 PCP-A Accesus gantries of 4, 5, 6 or 7 meters of beam joined by a central beam of 4, 5, 6 or 7 meters.

The maximum load capacity of any of its possible configurations is 1,000 kg. We can build BAS gantry structures with the desired PCP-A heights (A1, B1, C1, or C2), including leg heights from 1.6 to 6.4 meters, adjustable every 200 meters. Like the other Accesus gantries, the BAS is suitable for lifting loads and a maximum of 5 people.

Made mostly of aluminum, the BAS gantry is a model that can be easily assembled in a few steps by two people. Certified according to the safety standard EN 795 B.

This model comes with locking swivel wheels suitable for all types of surfaces and terrains, although special wheels can be ordered.

Ask here for more information

Summary table of basic BAS gantry features:

Maximum load capacity 1.000 Kg
Weight 462 to 903 Kg
Possible heights 4: A1 (1,600 to 2,200 mm), B1 (2,200 to 3,600 mm), C1 (3,200 to 5,400 mm) and C2 (4,230 to 6,430 mm)
Suitable for people loading 4 to 7 m
Available beam lengths 4 to 7 m
Possible center beam lengths 2,1:1
Safety factor for loads 10:1
Safety for rescuing people Maximum 5 people, according to the configuration
Material Aluminum
