Suspension clamp EN 1808

Suspension clamp EN 1808

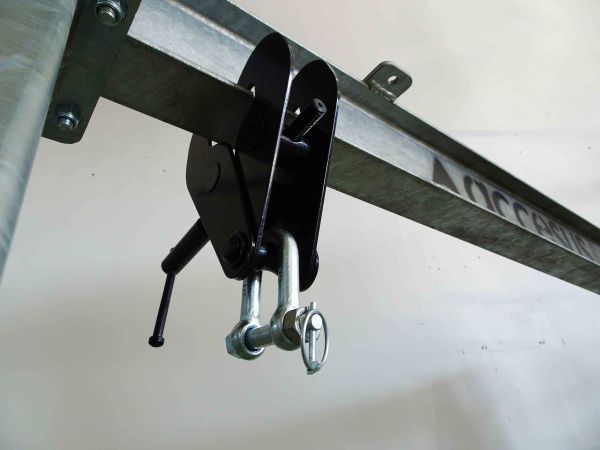

The Accesus EN 1808 suspension clamp is a hanging element designed to fix the cables of Accesus suspended platforms to beams with “T” and “double T” profiles. These clamps have a maximum load capacity of 1,000 kg.

This suspension system provides a quick and versatile fixing point for suspended scaffolding. In addition, it is easily adjustable to different beam widths thanks to its threaded rod mechanism. Optionally, it can be supplied with shackles to adapt to small hooks. It is important to note that only one platform cable can be anchored for each clamp.

The Accesus EN 1808 suspension clamp is always delivered with its corresponding CE certificates for lifting people and its use and assembly manual, as required by the European Machinery Directive 2006/42 and EN 1808.

Ask here for more information

Summary table of basic features of the EN 1808 suspension clamp:

Max. load capacity  500 or 1,000 Kg, according to model
Clamp weight 500 Kg 3,8 Kg
Gripper weight 1,000 Kg 4,6 Kg
Beam flange width From 75 to 230 mm
Safety coefficient 10:1
Material Steel
