Parapet clamp

Parapet clamp

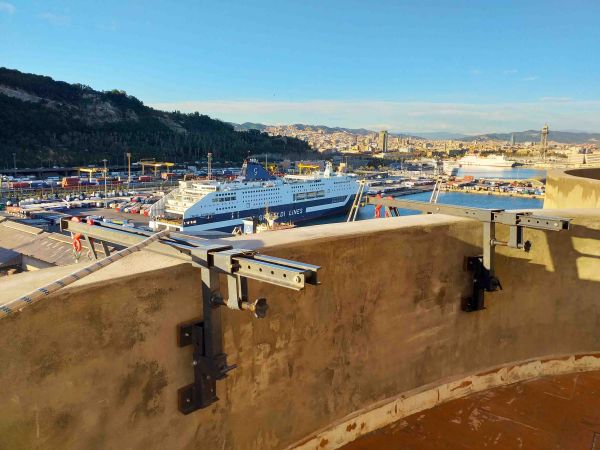

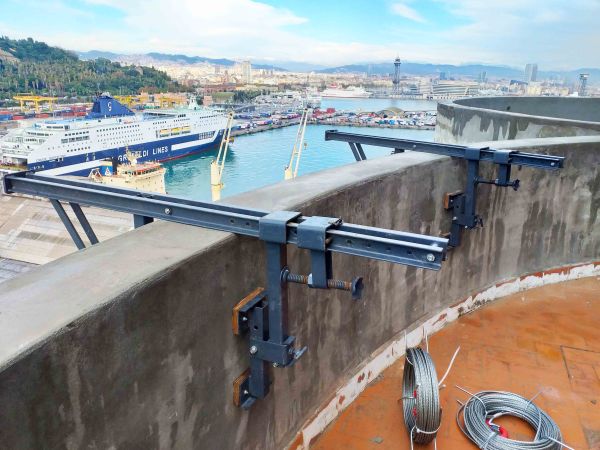

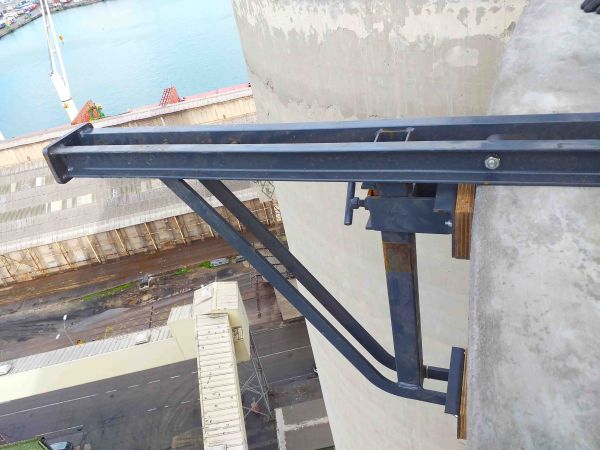

The Accesus parapet clamp is an easy solution to suspend Accesus hanging platforms from walls and parapets without the necessity of balance or taking up space on the roof. There are 2 models available, with maximum load capacities of 500 and 800 kg, respectively.

The Accesus Parapet clamp is lightweight and easy to install. It is equipped with various fixing systems adjustable to different wall widths between 0.15 and 0.50 meters. This dungarees suspension clamp has an anchorage point at the back to fix a steel wire sling, as well as several possible hooking positions for the scaffolding suspension wires at the front.

Before every use, it is important to check that the surface on which the clamp is to be mounted can withstand the transmission loads of the clamp. As always, this davit is delivered with its corresponding CE certificates for lifting people and its use and assembly manual, as required by European Directive 2006/42 and EN 1808.

Ask here for more information

Summary table of basic features of the Parapet Clamp:

Max. load capacity  500 or 800 kg according to the model
Clamp weight 500 Kg 27 Kg
Clamp weight 800 Kg 49 Kg
Bib width 0,15 a 0,50 m
Feather Flight 0,35 - 0,48 - 0,60 m
Material Steel
