BRAKOO (Models 1A to 4D)

BRAKOO (Models 1A to 4D)

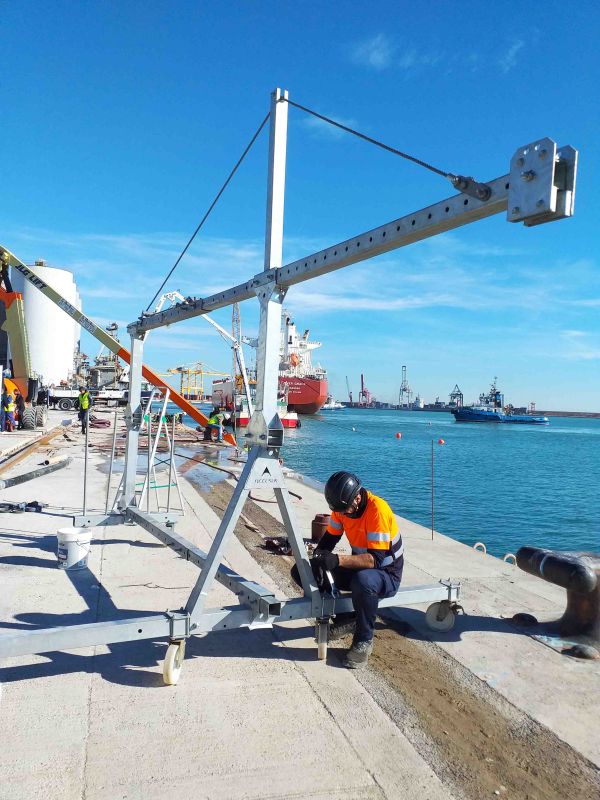

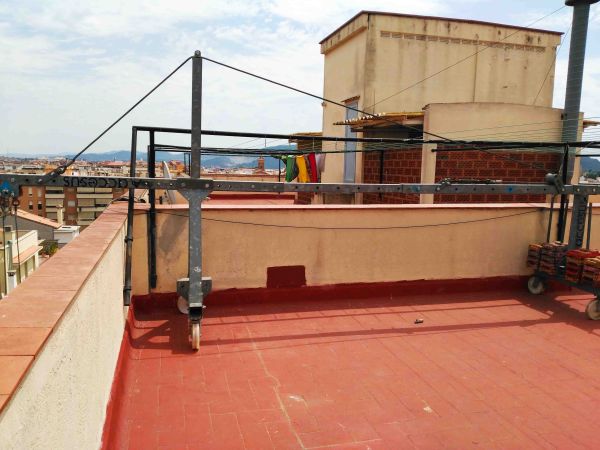

The BRAKOO davit by Accesus is a modular device with counterweights designed to support all types of suspended scaffolding, suspended chairs and suspended man baskets, and electrical material for lifting devices. Therefore, it is a very useful suspension davit for lifting people and loads because of its modularity to different dimensions and morphologies of terraces, roofs, and rooftops.

If we look at the load capacity it can carry, the BRAKOO suspended davit is approved for hanging scaffolding with lifts with a maximum load capacity of 300, 400, 500, 600, 800 or 1,000 kg.

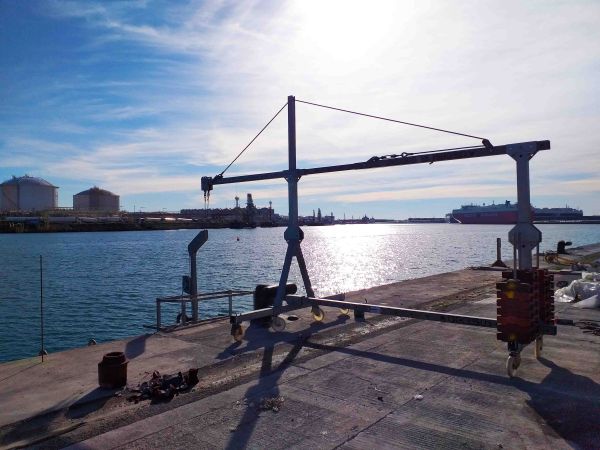

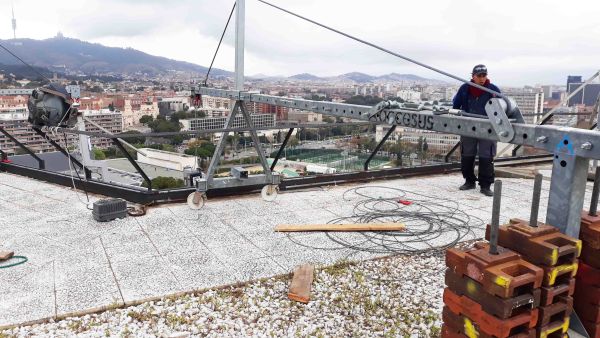

The BRAKOO davit installation is speedy, using screws and pins that fix the 25 kg counterweights in the davit housings. There are up to 16 possible configurations of the BRAKOO davit (see Technical Data Sheet see all models, ranging from 1A to 4D), which are established by touching on four variables: flight, height, suspended load, and space or length available on the deck, terrace or roof.

Ask here for more information

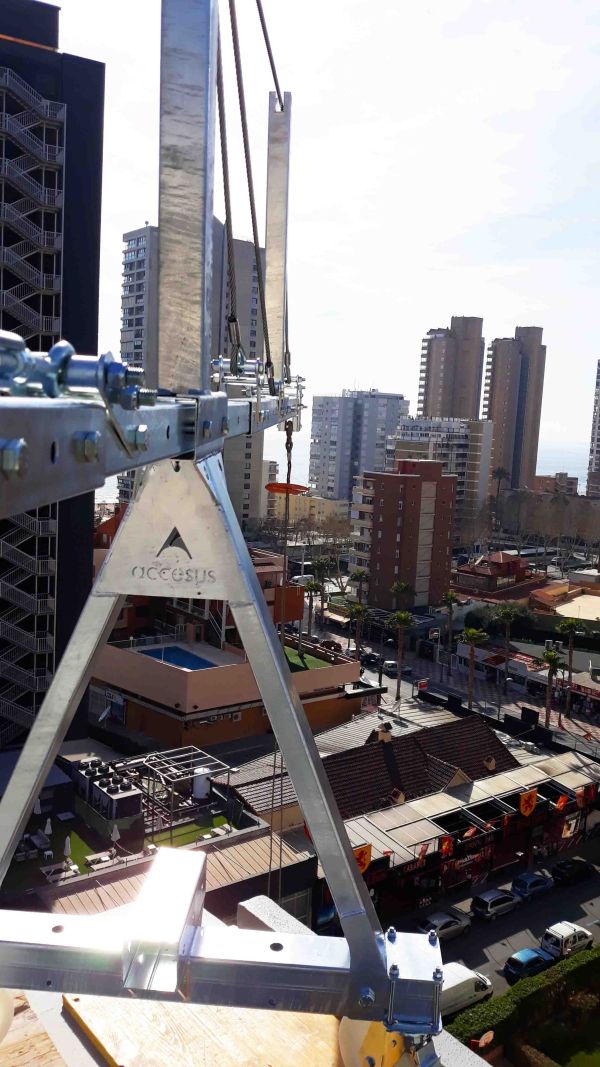

Made of galvanized steel, it is a davit with great resistance to weather and difficult climatic situations.

The BRAKOO davit is delivered with its corresponding CE certificates and its assembly and uses manual, as required by European Directive 2006/42 and EN 1808.

Summary table of basic features of the BRAKOO davit:

Modular configurations possible16 models: A, 1B, 1C, 1D, 2A, 2B, 2C, 2D, 3A, 3B, 3C, 3D, 4A, 4B, 4C, 4D
Max. load capacity BRAKOO 1.000 Kg
Min. and max. flight BRAKOO 0,3 - 3 m
Longitud mín. y máx. BRAKOO 2,3 - 8,3 m
Weight (without counterweights) min. and max. of models 1 100 - 200 Kg
Height under the beam, model 1 350 mm
Weight (without counterweights) min. and max. of models 1 140 - 235 Kg
Height under the beam, model 2 1.250 mm
Weight (without counterweights) min. and max. of models 3 250 - 350 Kg
Height under the beam, model 3 2.200 mm
Weight (without counterweights) min. and max. of models 4 255 - 355 Kg
Height under beam models 4 2.500 mm
Material Galvanized steel
